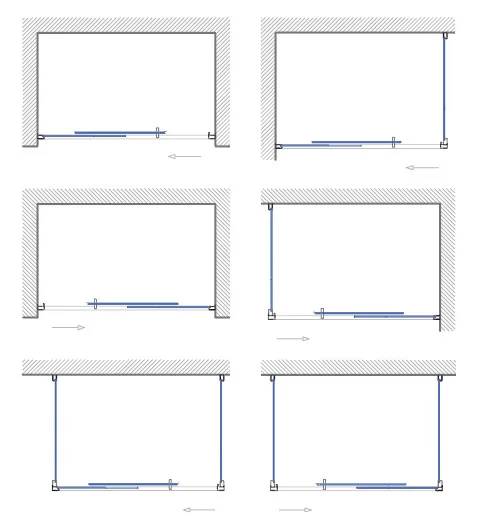

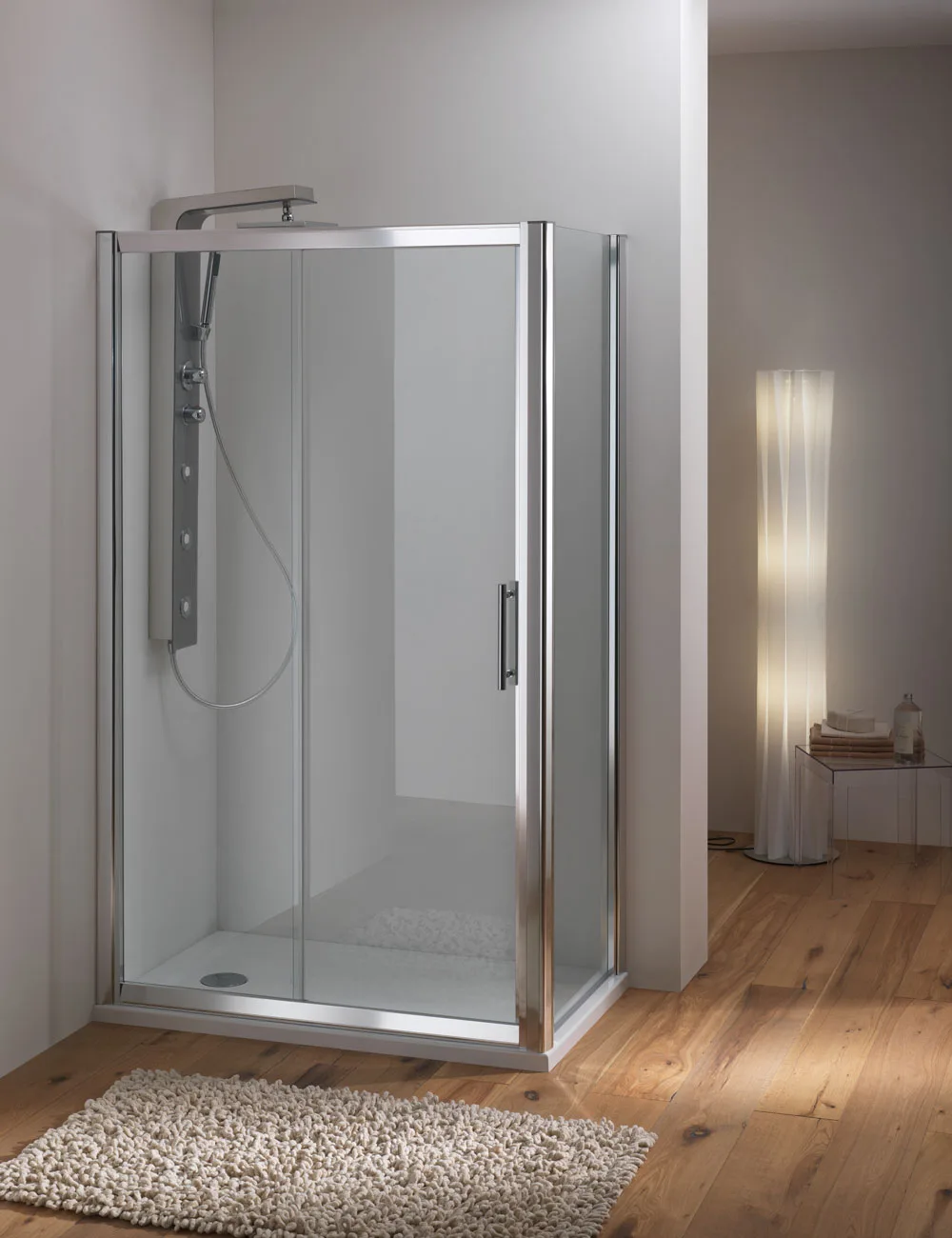

Door consisting of a fixed panel and a sliding door; 6mm tempered glass; upper and lower wheels. The wall profile is fixed from the outside, simplifying the installation procedure and ensuring that there are no visible screws or caps inside the shower. Reversible. Single installation between walls, or combined with one or two lateral WAKO FIX. Each FIX reduces the effective L. of the door by 1.5cm Glass treatment provided as an option.
GLASS:
– 6MM TRANSPARENT
– 6MM SERIGRAPHY
– 6MM PRINTED
– 6MM FROSTED
PROFILE:
– CHROME
– SATINIZED SILVER
– WHITE
|
Door size
|
Regulation
|
H
|
Useful entrance space
|
|---|---|---|---|
|
115 cm
|
110/115
|
195 cm
|
48,5 cm
|
|
120 cm
|
115/120
|
195 cm
|
50 cm
|
|
125 cm
|
120/125
|
195 cm
|
52,5 cm
|
|
130 cm
|
125/130
|
195 cm
|
55 cm
|
|
135 cm
|
130/135
|
195 cm
|
57,5 cm
|
|
140 cm
|
135/140
|
195 cm
|
60 cm
|
|
145 cm
|
140/145
|
195 cm
|
62,5 cm
|
|
150 cm
|
145/150
|
195 cm
|
65 cm
|
|
155 cm
|
150/155
|
195 cm
|
67,5 cm
|
|
160 cm
|
155/160
|
195 cm
|
70 cm
|
|
165 cm
|
160/165
|
195 cm
|
72,5 cm
|
|
170 cm
|
165/170
|
195 cm
|
75 cm
|
|
175 cm
|
170/175
|
195 cm
|
77,5 cm
|
|
180 cm
|
175/180
|
195 cm
|
80 cm
|
|
185 cm
|
180/185
|
195 cm
|
82,5 cm
|
|
190 cm
|
185/190
|
195 cm
|
85 cm
|
|
195 cm
|
190/195
|
195 cm
|
87,5 cm
|
|
200 cm
|
195/200
|
195 cm
|
90 cm
|
